Steam Radiator Inlet Orifice Plates

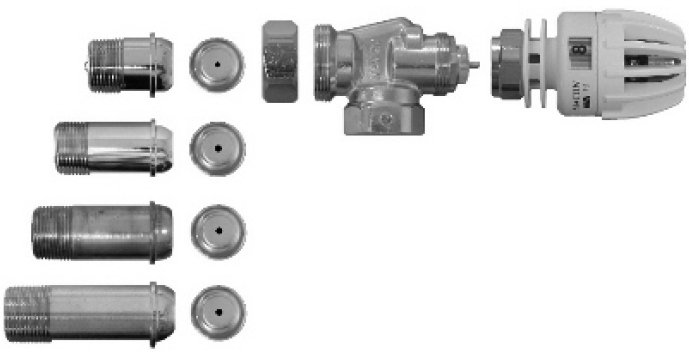

If your building utilizes steam for heat, perhaps you have recently heard of Orifice Plates. Maybe you have heard of them as being “little copper bottle caps” that you drill a hole through and install on a steam radiator or convector. Simple, right? Not really. Sure, at first glance, the Orifice Plate may appear to be just a round piece of copper with a hole, however, this is a carefully custom manufactured product and there are many factors and information that gets collected to determine exactly what size to make that hole and that is absolutely critical to proper functionality. Why? There are two very important reasons that this little hole needs to be the correct size. The hole has to be large enough to allow enough steam into the radiator to satisfy the temperature setting on the Thermostat but not enough steam where it reaches the thermostatic steam trap which could potentially allow live steam into your return which will cause all kinds of problems like water hammer, pressurized returns, cavitated pumps and ultimately, cold radiators. If an Orifice Plate is sized correctly, you can reduce maintenance by not having to repair that thermostatic steam trap any longer as the steam will condense, give off its latent heat and turn back to condensate before it reaches the steam trap as you can see from the thermal image picture below. Tunstall Corporation has the knowledge and expertise to size the Orifice Plates correctly.
