Macon Controls has a solution that upgrades an existing thermostatic control operator while the heating system is functioning. There is no need to shut off or drain the system with the Macon UA. Just identify the existing thermostatic operator, select the Macon UA, add a Macon thermostat and your valve is upgraded to the Macon Controls standard of quality!
Inserts for Conversion to Macon Operators ...
| Model No. | Macon RS Inserts | Umbrella Adapters |

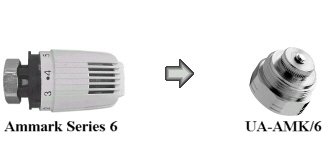

| Ammark-SYR ½, ¾ 70 Series | MAC-RSAMK-TT6 | MAC-UA-AMK-2 |

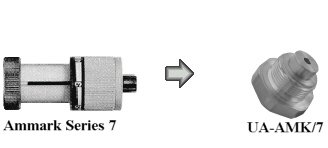

| Ammark-SYR ½, ¾ 60 Series | MAC-RSAMK-TT7 | MAC-UA-AMK |

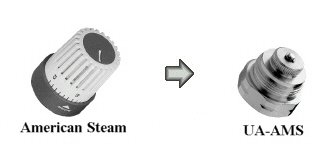

| American Steam: 12 | * | MAC-UA-AMS |
| Armstrong: LV-4 | * | MAC-UA-ARM |

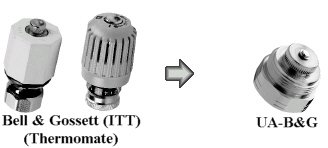

| Bell & Gossett (ITT) | RSB & G | MAC-UA-B & G |

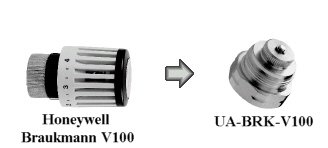

| Honeywell Braukmann V100 | MAC-RSBRK-V100 | MAC-UA-BRK-V100 |

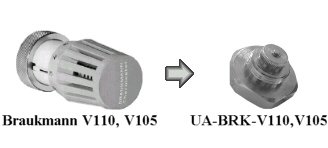

| Braukmann: V110, V105 | MAC-RSBRK | MAC-UA-BRK-V110 |
| Danfoss: RA | MAC-RSDNF-RA | Use New Insert |

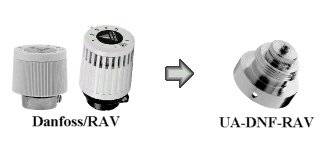

| Danfoss: RAV ¾" & 1" Horizontal Angle | MAC-RSDNF-TT1 | MAC-UA-DNF-RAV |
| Danfoss: RAV ½", ¾" Vertical Angle, Straight | MAC-RSDNF-TT2 | MAC-UA-DNF-RAV |

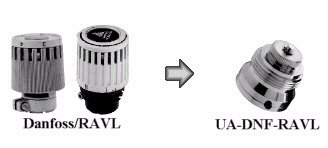

| Danfoss: RAVL | * | MAC-UA-DNF-RAVL |

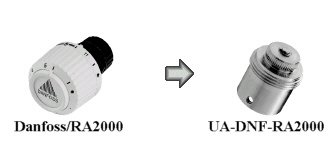

| Danfoss: RA2000 ½" Vertical Angle, Straight | MAC-RSDNF-TT4 | MAC-UA-DNF-RA2000 |
| Danfoss: RA2000 ¾" Straight | MAC-RSDNF-TT4 | MAC-UA-DNF-RA2000 |
| Danfoss: RA2000 ¾" & 1" Horizontal & Vertical Angle | MAC-RSDNF-TT3 | MAC-UA-DNF-RA2000 |

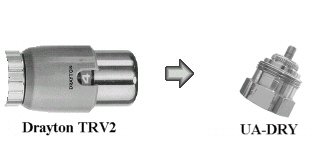

| Drayton: TRV2 | * | MAC-UA-DRY |

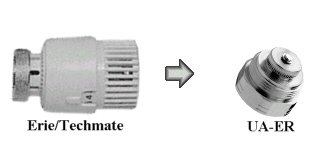

| Erie-Techmate | * | MAC-UA-ER |
| Flair TLC | MAC-RSFL | MAC-UA-FL |

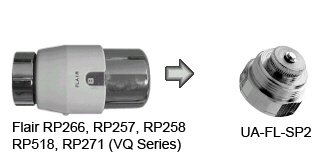

| Flair Head=RP266 / RP257 / RP258 / RP518 Insert=RP271 (VQ Series) |
MAC-RSFL | MAC-UA-FL-SP2 |

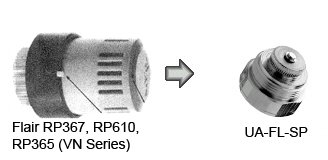

| Flair Head=RP367 / RP610 Insert=RP365 (VN Series) |
MAC-RSFL | MAC-UA-FL-SP |
| Flair Head=RP510 / RP511 / RP512 / RP513 Insert=RP370 (VW or VY Series) |
MAC-RSFL | MAC-UA-FL-SP3 |

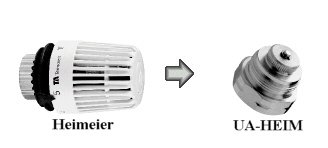

| Heimeier / TA | * | MAC-UA-HEIM |
| Minneapolis Honeywell: V5061 | MAC-T23000 | Use New Insert |

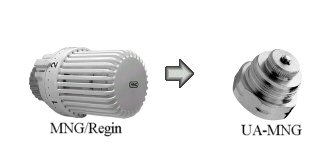

| MNG / Regin | * | MAC-UA-MNG |
| Oventrop / American Steam | * | MAC-UA-Oven |

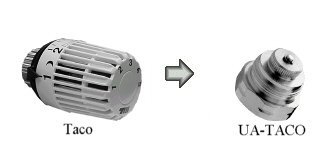

| Taco (Heat - Gard) | MAC-RSTACO | MAC-UA-TACO |
| Taco (1990 On, 53 Series), Eire Techmate | MAC-RSTACO-2 | MAC-UA-TACO |

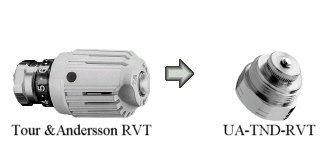

| Tour & Andersson - RVT + TRV | MAC-RSTND | MAC-UA-TND-RVT |

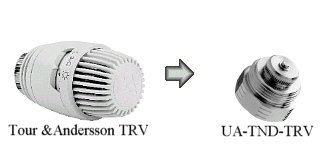

| Tour & Andersson - TRV | MAC-RSTND | MAC-UA-TND-TRV |
| Tunstall Inserts can be engineered for all manual radiator valves. Sample may be required. If not listed, contact your representative or the engineering staff at Tunstall Corporation * - Consult Factory |
||
Macon E-Z™ Fit Conversion Kits for Manual Radiator Valve Applications ...
| Model No. | Insert # |
| Armstrong MV2, MV3 | MAC-RSARM |
| Barnes & Jones Series 88 | MAC-RSBJ |
| Barnes & Jones Series F, K | MAC-RSBJ-F,K |
| DAHL - Canada | MAC-RSDL |
| Dunham 740, 840 | MAC-RSDNB |
| Hammond | MAC-RSHA |
| Hoffman 180 | MAC-RSHF |
| Illinois 65 | MAC-RSIL |
| Marsh | MAC-RSMA |
| MEPCO | MAC-RSMEP |
| Sarco | MAC-RSSA |
| Sterling | MAC-RSST |
| Trane | MAC-RSTR |
| Warren Webster | MAC-RSWW |
| Warren Webster Sylphon | MAC-RSWW-SYL |
Tools for Tailpieces and Insert Removal ...
| Part No. | Tool for: |
| Tailpiece Tools: | |
| MAC-ST1 | 1/2” Hex Tailpiece |
| MAC-ST2 | 3/4” Hex Tailpiece |
| MAC-ST3 | 1” x 1-1/4” Hex Tailpiece |
| MAC-ST4 | 1/2” x 3/4" Hex Tailpiece |
| Insert Removal Tools: | |
| MAC-IRT-1 | Braukmann V110, V105 |
| MAC-IRT-2 | Danfoss RAV |
| MAC-IRT-3 | Danfoss RA |
| MAC-IRT-4 | Ammark-SYR |
| MAC-T23000-Wrench | Wrench for T23000 |
| MAC-T25000-Wrench | Wrench for T25000 |
| ICT | Insert Changer Tool for Macon T23000 Insert |
| Custom tools can be made on application – Consult Factory. | |
